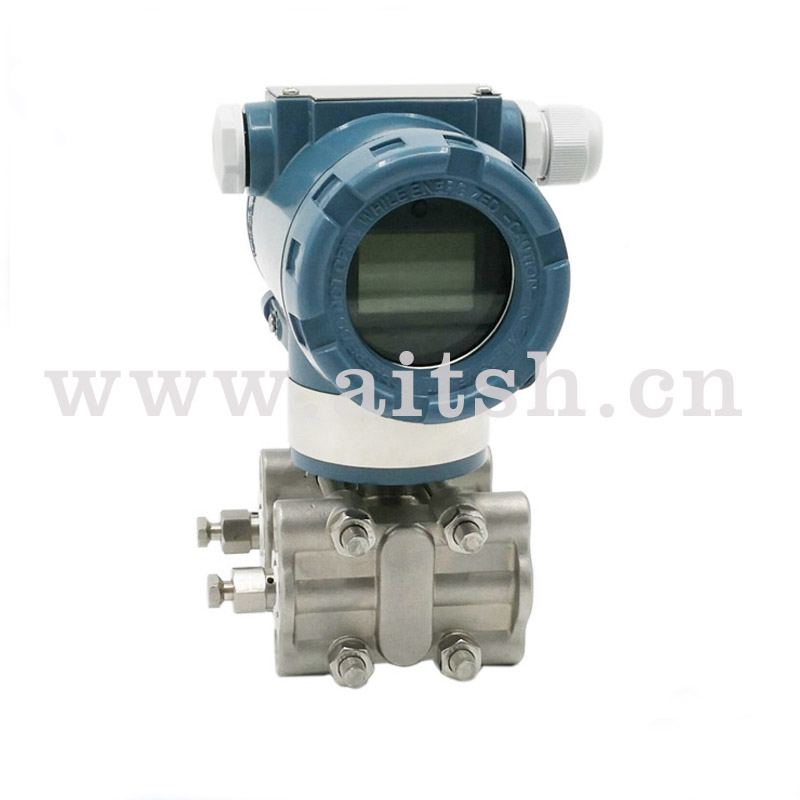

The AP1001 differential pressure transmitter is used to measure the differential pressure of different pressure points of liquid or gas, and then convert it into a 4-20mADC output, with the HART communication protocol.
Performance Specification
Accuracy of Range:
±0.1%（Including nonlinearity, hysteresis and repeatability）
Ambient Temperature Influence
The total amount of influence from -25℃ to 65 ℃ is:
±(0.15×TD+0.1)%×Span
The total influences at -40 ℃ to -25 ℃ and 65 ℃ to 85 ℃ are:
±(0.2×TD+0.1)%×Span
TD=maximum range/adjustment range
Over range Influence
±0.075%×Span
Stability
±0.1%×Span/year
Power Supply Influence
±0.001% /10V(14～45V DC), (it can be almost ignored）
